Perfect for a home without ductwork or a newly converted space, our Preferred™ Series multi-zone heat pump might be the right choice for you. As a part of the 38MGRB Multi-Zone Ductless System, you can use up to five indoor units supported by just one outdoor unit. The Inverter compressor delivers year-round comfort on the hottest summer days to colder, winter nights (98% capacity as temperatures down to 5° F when properly sized and matched with specific indoor units).
Energy Star Qualified: Some sizes qualified
SEER Efficiency: up to 25
HSPF Efficiency: up to 11.3
Bryant 38MGRB Ductless System
Deluxe Comfort for Up to Five Separate Spaces, No Ducts Required
Need Air Conditioner Service?
Contact the experts at ClimateGuys.com.
Call us at
Bryant DGAPA Air Purifier
Like Putting an Air Purifier in Every Room
Like Putting an Air Purifier in Every Room
Compact enough to fit most tight furnace/fan coil installations, this whole-home air purifier solution cleans the air flowing through your system. It silently traps 95% of particles. And, with Captures & Kills® technology, it inactivates select airborne pathogens, including the coronavirus captured by the MERV 15 filter.
Merv Efficiency:
15
Features
- Patented Captures & Kills® technology
- Long-lasting MERV 15 filter
- Captures 95% of particles
- Inactivates 99% of select virus and bacteria, including:
- Human influenza
- Common cold surrogate
- Streptococcus pyrogenes
- Coronavirus
- Narrow cabinet design for easier installation in tight spaces
- Helps protect heating and cooling equipment
- 10-year parts limited warranty upon timely registration (excludes filter replacements)
Specifications
Performance
- Efficiency MERV 15 filtration captures 95% of particles
- Rated airflow 1620:1200 cu/ft/min; 1625:1400 cu/ft/min; 2020:1400 cu/ft/min; 2025: 1750 cu/ft/min; 2420:1750 cu/ft/min
- Pressure drop Creates minimal airflow resistance
Technology
- Filtration Patented Captures and Kills™ technology
- Compatibility Can be fitted to operate in line with with nearly any brand ducted system. Patented True Sense™ dirty filter detection available with Evolution control
Installation
- Installation For use with furnaces in upflow, downflow or horizontal positions
- Electrical 115V, 208-230V
Aesthetics
- Cabinet Heavy-gauge, epoxy coated steel
- Dimensions Furnace/fan coil sizes: 1620: 18.5″H x 7.25″W x 24.75″D; 1625: 18.5″H x 7.25″W x 27.75″D; 2020: 22.25″H x 7.25″W x 24.75″D; 2025: 22.25″H x 7.25″W x 27.75″D; 2420: 25.75″H x 7.25″W x 24.75″D

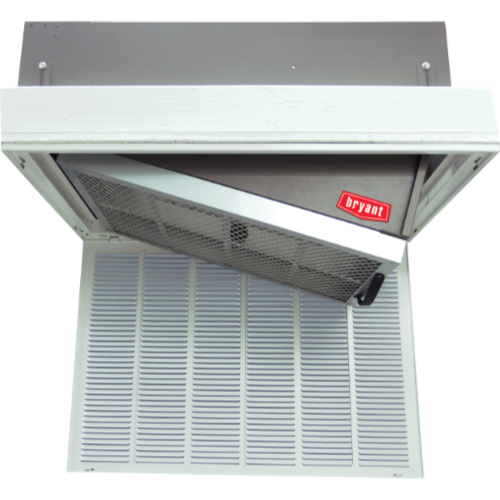

Bryant RGAP Air Purifier
Like Putting an Air Purifier in Every Room
Installs in your ceiling return air grille and cleans the air flowing through your system. It silently traps 95% of particles. And, with Captures & Kills® technology, it inactivates select airborne pathogens, including the coronavirus captured by the MERV 15 filter.
MERV Efficiency: 15
Features
- Patented Captures & Kills® technology
- Long-lasting MERV 15 filter
- Captures 95% of particles
- Inactivates 99% of select virus and bacteria including:
- Human influenza
- Common cold surrogate
- Streptococcus pyrogenes
- Coronavirus
- Helps protect heating and cooling equipment
- 10-year parts limited warranty upon timely registration (excludes filter replacements)
Specifications
Performance
- Efficiency MERV 15 filtration captures 95% of particles
- Germicidal capability 99%
- Pressure drop Creates minimal airflow resistance
Technology
- Filtration Patented Captures and Kills® technology
Installation
- Installation Ceiling installation
- Compatibility Two different models available for either furnace or fan coil applications. Your Bryant dealer will recommend the appropriate model to fit your needs.

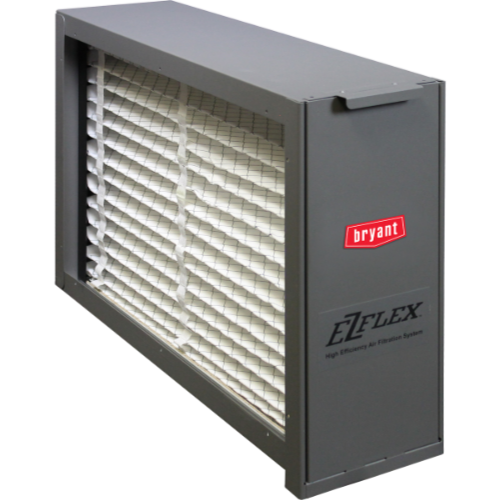

Bryant EZXCAB Air Purifier
High-Efficiency Indoor Air Filtration
The Legacy Line EZ Flex Cabinet Air Filter can protect and improve heating and cooling system performance with a MERV 10 efficiency that treats the air flowing through your system. Cleaning the air has never been simpler thanks to the easy to remove filter cabinet door.
Performance: Standard Filtration
MERV Efficiency: 10
Features
- MERV 10 filtration rating
- Captures 63% of particles 1.0 to 3.0 microns in size
- Helps protect heating and cooling equipment
- Deep pleated filters hold more dust for fewer filter changes
- Easy to replace filters. See owners manual for replacement schedule.
- 10-year parts limited warranty on cabinet upon timely registration
Options
- MERV 13 replacement filters
Specifications
Performance
- Efficiency MERV 10 filtration captures 63% of particles 1.0 to 3.0 microns in size
- Rated airflow 0016: 1600 cu/ft/min; 0020: 2000 cu/ft/min
- Pressure drop Creates minimal airflow resistance
Installation
- Installation For use with furnaces and fan coils in upflow, downflow or horizontal positions
Aesthetics
- Cabinet 20-gauge, steel cabinet in taupe color to match Bryant furnaces and fan coils
- Dimensions Furnace/fan coil sizes: 0016: 17″H x 7.25″W x 25″D; 0020: 21″H x 7.25″W x 25″D

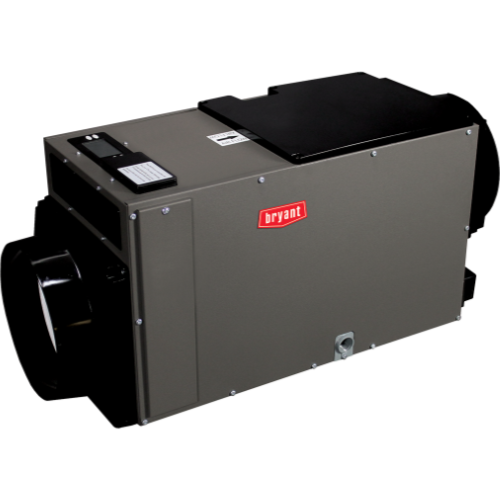

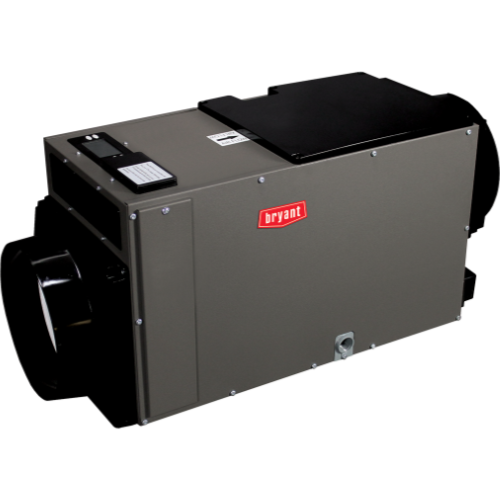

Bryant DEHXX Dehumidifier
Whole-Home Dehumidification for Comfort and Cooling Savings
A Bryant dehumidifier offers soothing relief from high humidity and cooling costs. By drawing excess moisture from indoor air, it lets you feel comfortable without over cooling your home, while also improving indoor air quality and helping to preserve wood furnishings.
Features
- Automated operation based on your comfort preference
- Compact size
- Long-lasting corrosion protection with epoxy-coated coil
- Permanent MERV 8 filter captures dust particles while allowing free flow of air
- Zoning capable
- Easy-to-use LCD control on the unit’s cabinet
- Designed for quiet operation
- 5-year parts limited warranty
Options
- Wall-mounted control
Specifications
Efficiency Management
- ENERGY STAR® All sizes meet ENERGY STAR® guidelines for high efficiency
Performance
Capacity
- 1070: Up to 70 pints/day (8.75 gal./day)
- 1095: Up to 95 pints/day (11.75 gal./day)
- Sound Quiet operation
Technology
- Moisture removal Independent refrigeration system with blower, coil and compressor
- Coil Epoxy-coated for corrosion resistance
- Zoning capable Yes
- Compatible controls On-board LCD control. Also works with Preferred Thermidistat™ or optional wall-mounted dehumidifier control
Installation
- Installation Compatible with any furnace or fan coil. If space constrained, can be remote mounted with options for top or side ducting. Can be installed as part of a system or standalone.
- Electrical 120V
Aesthetics
- Outer casing Baked on urethane base coat and polyester top coat paint
- Dimensions
- 1070 – 14.5″H x 25″W x 12.5″D
- 1095 – 14.5″H x 27.5″W x 12.5″D

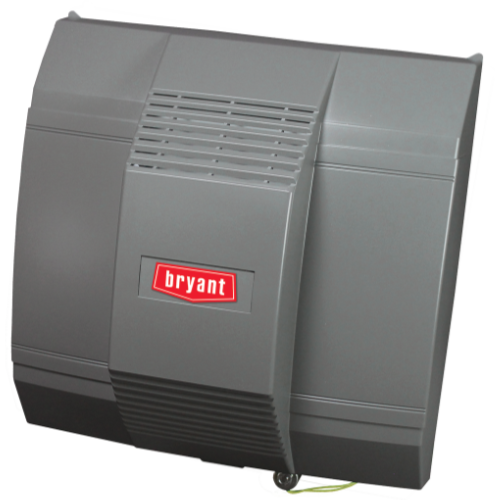

Bryant HUMCRLFP Humidifier
High-Capacity, Fan-Powered Humidifier Delivers Moisture to Dry, Winter Air
This quiet, high-capacity humidifier can help keep your winter heating costs down because humidified air feels warmer – letting you enjoy comfort at cooler temperature settings. It’s a logical alternative to simple bypass-style models, perfect for larger homes with its high output and improved moisture dispersal.
Water Vapor Output: Up to 18 gal./day
Type: Fan Powered
Features
- Electric fan, vapor dispersal for better moisture delivery
- Higher capacity type for larger homes
- Replaceable, treated aluminum evaporator pad
- Front-facing, easy-access door
- Low-noise operation
- A better choice for homes with heat pumps
- 10-year parts limited warranty upon timely registration
Specifications
Performance
- Capacity 18 gallons per day
- Sound Quiet operation
Technology
- Dispersal Fan type
- Evaporator Pad Treated, expanded aluminum
- Compatible controls Evolution® control, Preferred™ Thermidistat™ or separate humidifier control
Installation
- Installation Can be mounted onto units installed in upflow, downflow or horizontal positions
- Electrical 120V
Aesthetics
- Outer casing Taupe color on UV-resistant thermoplastic matches Bryant furnace and fan coils
- Dimensions 18″H x 16″W x 10.25″D

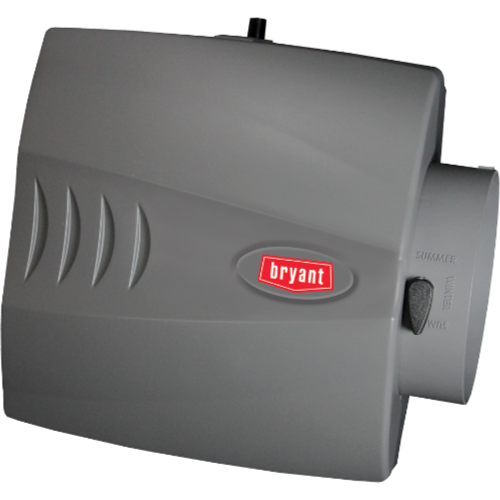

Bryant HUMCRLBP Humidifier
Bypass Style Humidifiers Help Keep You Breathing Easier All Winter Long
The Bryant® Preferred series bypass humidifier works as a value-add to your heating system, relying on the furnace or fan coil blower to deliver up to 17 gallons of moisture vapor throughout your home per day. It improves your whole-home comfort by reducing the effects of dry, indoor air, including static, sore throats, dry skin and sinuses.
Water Vapor Output: 17 gal./day
Type: Bypass
Features
- Furnace or fan coil dependent dispersal
- Solenoid valve and water distribution system
- Large or small capacity models available
- Treated aluminum or water-saving paper evaporator pad models available
- Front-facing, easy-access door
- Nearly silent operation
- Use with any type of cooling system
- 10-year parts limited warranty upon timely registration
Specifications
Performance
- Capacity 17 gallons per day
- Sound Nearly silent
Technology
- Dispersal Uses blower from furnace or fan coil
- Damper Built-in bypass
- Evaporator Pad Treated, expanded aluminum
- Compatible controls Evolution® control, Preferred™ Thermidistat™ or separate humidifier control
Installation
- Installation Can be mounted onto units installed in upflow, downflow or horizontal positions
- Electrical 24V powered by furnace or fan coil
Aesthetics
- Outer casing Taupe color on UV-resistant thermoplastic matches Bryant furnace and fan coils
- Dimensions 15.5″H x 14″W x 10.25″D
Bryant HUMCRSBP Humidifier
The Preferred Choice for Modest-Sized Homes
Perfect for smaller homes, this 12 gallon per day bypass humidifier adds moisture to dry, indoor air with an assist from your heating and cooling system’s blower fan. As a result, you can enjoy relief from common dry-air discomforts such as static electricity, skin dryness, sore throats and dry sinuses.
Water Vapor Output: 12 gal./day
Type: Bypass
Features
- Furnace or fan coil dependent dispersal
- Solenoid valve and water distribution system
- Large or small capacity models available
- Treated aluminum or water-saving paper evaporator pad models available
- Front-facing, easy-access door
- Nearly silent operation
- Use with any type of cooling system
- 10-year parts limited warranty upon timely registration
Specifications
Performance
- Capacity 12 gallons per day
- Sound Nearly silent
Technology
- Dispersal Uses blower from furnace or fan coil
- Damper Built-in bypass
- Evaporator Pad Treated, expanded aluminum
- Compatible controls Evolution® control, Preferred™ Thermidistat™ or separate humidifier control
Installation
- Installation Can be mounted onto units installed in upflow, downflow or horizontal positions
- Electrical 24V powered by furnace or fan coil
Aesthetics
- Outer casing Taupe color on UV-resistant thermoplastic matches Bryant furnace and fan coils
- Dimensions 13″H x 14″W x 10.25″D
Bryant HUMCRWBP Humidifier
Preserve Your Comfort While Conserving Water
This water-saver model is 100% efficient with its ability to convert water into comfort-enhancing relief from dry, heated indoor air. It’s a value-add to your heating system as well, relying on the furnace or fan coil blower to deliver moisture vapor throughout your home. With the ability to deliver up to 17 gallons of moisture a day, it helps provide whole-home comfort by reducing the effects of dryness including static, sore throats, dry skin and sinuses.
Water Vapor Output: 17 gal./day
Type:
Bypass
Features
- Furnace or fan coil dependent dispersal
- Solenoid valve and water distribution system
- Large or small capacity models available
- 100% efficient water usage
- Treated aluminum or water-saving paper evaporator pad models available
- Front-facing, easy-access door
- Nearly silent operation
- Use with any type of cooling system
- 10-year parts limited warranty upon timely registration
Specifications
Performance
- Capacity 17 gallons per day
- Sound Nearly silent
Technology
- Dispersal Uses blower from furnace or fan coil
- Damper Built-in bypass
- Evaporator Pad Treated, 100% water-use efficient expanded paper
- Compatible controls Evolution® control, Preferred™ Thermidistat™ or separate humidifier control
Installation
- Installation Can be mounted onto units installed in upflow, downflow or horizontal positions
- Electrical 24V powered by furnace or fan coil
Aesthetics
- Outer casing Taupe color on UV-resistant thermoplastic matches Bryant furnace and fan coils
- Dimensions 15.5″H x 14″W x 10.25″D (HUMBBWBP)
Bryant UVLBB1LP UV Lamp
Provides Cleaner Indoor Air
Bryant’s Preferred UV Lamp attacks and prohibits growth of mold and bacteria on the surface of your indoor coil preventing them from becoming airborne and recirculating back into your home.
Bulb Style: Single Bulb
Wattage: 53 Watts
Features
- Prohibits bacteria and mold growth on the surface of your indoor coil
- Improves air quality of home
- Silent operation
- Enhances air flow
- Minimizes build-up on coils
- Helps to improve system efficiency
- 5 year limited warranty, 90-day limited warranty for lamps
Specifications
Performance
- Warranty 90-day limited on lamp/ballast assembly; 5-year limited on base and power cord
- Average Power Consumption 23 watts
- Maximum Amperage Draw .6 AMPS
Technology
- Average Lamp Life 1 year
- Lamp Length 19 inches
- Average Power Consumption 53 watts
- Unit Power Cord Included 6 foot cord
Bryant UVLBB2LP UV Lamp
Provides Cleaner Indoor Air
Bryant’s Preferred UV Lamp attacks and prohibits growth of mold and bacteria on the surface of your indoor coil preventing them from becoming airborne and recirculating back into your home.
Wattage: 27 watts
Bulb Style: Double Bulb
Features
- Prohibits bacteria and mold growth on the surface of your indoor coil
- Improves air quality of home
- Silent operation
- Enhances air flow
- Minimizes build-up on coils
- Helps to improve system efficiency
- 5 year limited warranty, 90-day limited warranty for lamps
Specifications
Performance
- Warranty 90-day limited on lamp/ballast assembly; 5-year limited on base and power cord
- Average Power Consumption 57 watts
- Maximum Amperage Draw 1.1 AMPS
Technology
- Average Lamp Life 1 year
- Lamp Length 19 inches
- Average Power Consumption 27 watts
- Unit Power Cord Included 6 foot cord

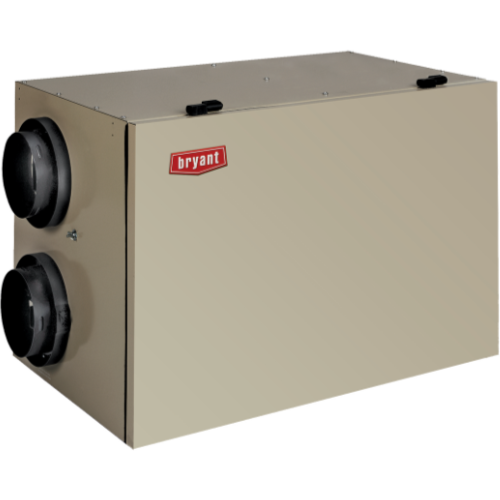

Bryant ERVCRLHB Ventilator
Bring Fresh Air Into Your Home Without Opening the Windows
This model ventilator may be the best choice if you have a larger home and live in a hot, humid summer climate. Use it year round. Its special, enthalpic transfer media core will help infuse indoor heating or cooling energy into the incoming air so you can have a fresh indoor environment even on extreme days. It’s a much better fresh air solution than opening a window and letting your energy dollars fly out.
Air Flow: Up to 198 cubic feet per minute
Sensible Recovery Energy:
Up to 60% SRE
Features
- Brings in fresh air and expels stale, sometimes unhealthy air
- Pre-conditions incoming air to minimize energy loss
- Reduces humidity in summer from incoming fresh air
- Prefilters particulates from incoming air and outgoing air to protect core
- Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
- Capable of intermittent- or continuous operation depending on control used
- Automatically defrosts when outdoor temperatures are below 23°F
- Designed for quiet operation
- 10-year parts limited warranty upon timely registration
Specifications
Efficiency
- Sensible Recovery Energy Up to 60% SRE
- Moisture Transfer Up to 72% at 32 °F
Performance
- Maximum Airflow Up to 198 cubic feet per minute
- Sound Quiet operation
Conveniences
- Filter Change Easy access hinged door for filter cleaning and core cleaning
Technology
- Core Moisture absorbing, crossflow, enthalpic core
- Core Protection Incoming and outgoing air is prefiltered
- Compatible Controls Evolution® or separate ventilator control
Installation
- Placement Wall or ceiling mounted
- Venting Horizontal
- Electrical 115V
- Aesthetics
- Cabinet Taupe color on metal matches Bryant furnace and fan coils
- Dimensions 17″H x 39″W x 17.25″D
Bryant ERVXXSHA Ventilator
Bring Fresh Air Into Your Home Without Opening the Windows
If you live in a hot, humid summer climate you may want to consider an ERV for its ability to bring fresh air in while keeping unwanted airborne moisture out, Designed for use all year long with a horizontal system, this unit’s special, enthalpic transfer media core will help infuse indoor heating or cooling energy into the incoming fresh air. Even on extreme winter days, it’s an energy-efficient alternative for refreshing comfort inside without opening your doors or windows.
Air Flow: Up to 150 cubic feet per minute
Sensible Recovery Energy: Up to 65% SRE
Features
- Brings in fresh air and expels stale, sometimes unhealthy air
- Pre-conditions incoming air to minimize energy loss
- Reduces humidity in summer from incoming fresh air
- Prefilters particulates from incoming air and outgoing air to protect core
- Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
- Capable of intermittent- or continuous operation depending on control used
- Automatically defrosts when outdoor temperatures are below 23°F
- Designed for quiet operation
- 10-year parts limited warranty upon timely registration
Specifications
Efficiency
- Sensible Recovery Energy Up to 65% SRE
Performance
- Maximum Airflow Up to 150 cubic feet per minute
- Sound Quiet operation
Conveniences
- Filter Change Easy access hinged door for filter cleaning and core cleaning
Technology
- Core Moisture absorbing, crossflow, enthalpic core
- Core Protection Incoming and outgoing air is prefiltered
- Compatible Controls Evolution® or separate ventilator control
Installation
- Placement Wall or ceiling mounted
- Venting Horizontal
- Electrical 115V
Aesthetics
- Cabinet Taupe color on metal matches Bryant furnace and fan coils
- Dimensions 19.125″H x 23.5″W x 16.125″D
Bryant ERVXXSHB Ventilator
Bring Fresh Air Into Your Home Without Opening the Windows
If you live in a hot, humid summer climate you may want to consider an ERV for its ability to bring fresh air in while keeping unwanted airborne moisture out, Designed for use all year long with a horizontal system, this unit’s special, enthalpic transfer media core will help infuse indoor heating or cooling energy into the incoming fresh air. Even on extreme winter days, it’s an energy-efficient alternative for refreshing comfort inside without opening your doors or windows.
Air Flow: Up to 145 cubic feet per minute
Sensible Recovery Energy: Up to 75% SRE
Features
- Brings in fresh air and expels stale, sometimes unhealthy air
- Pre-conditions incoming air to minimize energy loss
- Reduces humidity in summer from incoming fresh air
- Prefilters particulates from incoming air and outgoing air to protect core
- Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
- Capable of intermittent- or continuous operation depending on control used
- Automatically defrosts when outdoor temperatures are below 23°F
- Designed for quiet operation
- 10-year parts limited warranty upon timely registration
Specifications
Efficiency
- Sensible Recovery Energy Up to 75% SRE
- Performance
- Maximum Airflow Up to 145 cubic feet per minute
- Sound Quiet operation
Conveniences
- Filter Change Easy access hinged door for filter cleaning and core cleaning
Technology
- Core Moisture absorbing, crossflow, enthalpic core
- Core Protection Incoming and outgoing air is prefiltered
- Compatible Controls Evolution® or separate ventilator control
Installation
- Placement Wall or ceiling mounted
- Venting Horizontal
- Electrical 115V
Aesthetics
- Cabinet Taupe color on metal matches Bryant furnace and fan coils
- Dimensions 19.125″H x 23.5″W x 16.125″D
Bryant ERVXXSVA Ventilator
Bring Fresh Air Into Your Home Without Opening the Windows
Enjoy the refreshing effect of opening a window or door while preserving indoor comfort and system efficiency. This ERV offers the ability to remove moisture from incoming air during hot, steamy months and can supply a refreshing infusion of outdoor air all year long. It’s the perfect addition to your modestly-sized home.
Air Flow: Up to 150 cubic feet per minute
Sensible Recovery Energy:
Up to 65% SRE
Features
- Brings in fresh air and expels stale, sometimes unhealthy air
- Pre-conditions incoming air to minimize energy loss
- Reduces humidity in summer from incoming fresh air
- Prefilters particulates from incoming air and outgoing air to protect core
- Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
- Capable of intermittent- or continuous operation depending on control used
- Automatically defrosts when outdoor temperatures are below 23°F
- Designed for quiet operation
- 10-year parts limited warranty upon timely registration
Specifications
Efficiency
- Sensible Recovery Energy Up to 65% SRE
Performance
- Maximum Airflow Up to 150 cubic feet per minute
- Sound Quiet operation
Conveniences
- Filter Change Easy access hinged door for filter cleaning and core cleaning
Technology
- Core Moisture absorbing, crossflow, enthalpic core
- Core Protection Incoming and outgoing air is prefiltered
- Compatible Controls Evolution® or separate ventilator control
Installation
- Placement Wall or ceiling mounted
- Venting Vertical
- Electrical 115V
Aesthetics
- Cabinet Taupe color on metal matches Bryant furnace and fan coils
- Dimensions 21.5″H x 21″W x 16.125″D
Bryant ERVXXSVB Ventilator
Bring Fresh Air Into Your Home Without Opening the Windows
Enjoy the refreshing effect of opening a window or door while preserving indoor comfort and system efficiency. This ERV offers the ability to remove moisture from incoming air during hot, steamy months and can supply a refreshing infusion of outdoor air all year long. It’s the perfect addition to your modestly-sized home.
Air Flow: Up to 145 cubic feet per minute
Sensible Recovery Energy: Up to 75% SRE
Features
- Brings in fresh air and expels stale, sometimes unhealthy air
- Pre-conditions incoming air to minimize energy loss
- Reduces humidity in summer from incoming fresh air
- Prefilters particulates from incoming air and outgoing air to protect core
- Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
- Capable of intermittent- or continuous operation depending on control used
- Automatically defrosts when outdoor temperatures are below 23°F
- Designed for quiet operation
- 10-year parts limited warranty upon timely registration
Specifications
Efficiency
- Sensible Recovery Energy Up to 75% SRE
Performance
- Maximum Airflow Up to 145 cubic feet per minute
- Sound Quiet operation
Conveniences
- Filter Change Easy access hinged door for filter cleaning and core cleaning
Technology
- Core Moisture absorbing, crossflow, enthalpic core
- Core Protection Incoming and outgoing air is prefiltered
- Compatible Controls Evolution® or separate ventilator control
Installation
- Placement Wall or ceiling mounted
- Venting Vertical
- Electrical 115V
Aesthetics
- Cabinet Taupe color on metal matches Bryant furnace and fan coils
- Dimensions 21.5″H x 21″W x 16.125″D
Bryant HRVCRLHB Ventilator
Keep Heating Efficiently and Bring in Fresh Air Without Opening the Windows
This horizontal HRV provides reliable fresh air ventilation for larger homes. Created for use in colder climates with moderate or low summer humidity, it transfers indoor heat energy to the incoming air, even on frigid winter days. It’s a great way to let the fresh air in without letting your energy dollars out.
Air Flow: 204 cubic feet per minute
Sensible Recovery Flow: Up to 65% SRE
Features
- Brings in fresh air and expels stale, sometimes unhealthy air
- High-efficiency heat recovery core pre-conditions incoming air to minimize heat energy loss
- Prefilters particulates from incoming air and outgoing air to protect core
- Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
- Capable of intermittent- or continuous operation depending on control used
- Automatically defrosts when outdoor temperatures are below 23°F
- Designed for quiet operation
- 10-year parts limited warranty upon timely registration
Specifications
Efficiency
- Sensible Recovery Energy Up to 65% SRE
Performance
- Maximum Airflow 204 cubic feet per minute
- Sound Quiet operation
Conveniences
- Filter Change Easy access hinged door for filter cleaning and core cleaning
Technology
- Core Polypropylene, crossflow designed core
- Core Protection Incoming and outgoing air is prefiltered
- Compatible Controls Evolution® or separate ventilator control
Installation
- Placement Wall or ceiling mounted
- Venting Horizontal
- Electrical 115V
Aesthetics
- Cabinet Taupe color on metal matches Bryant furnace and fan coils
- Dimensions 16.5″H x 30.25″W x 17.25″D
Bryant HRVXXSHA Ventilator
Keep Heating Efficiently and Bring in Fresh Air Without Opening the Windows
This model delivers enhanced, refreshing ventilation for a smaller home with a horizontal indoor furnace or fan coil. Operating on the same principals as all of our HRVs, it transfers indoor heat energy to the incoming air to provide an infusion of freshness on extremely cold days. It’s a great way to let the fresh air in without letting your energy dollars out.
Air Flow: Up to 160 cubic feet per minute
Sensible Recovery Energy: Up to 75% SRE
Features
- Brings in fresh air and expels stale, sometimes unhealthy air
- High-efficiency heat recovery core pre-conditions incoming air to minimize heat energy loss
- Prefilters particulates from incoming air and outgoing air to protect core
- Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
- Capable of intermittent- or continuous operation depending on control used
- Automatically defrosts when outdoor temperatures are below 23°F
- Designed for quiet operation
- 10-year parts limited warranty upon timely registration
Specifications
Efficiency
- Sensible Recovery Energy Up to 75% SRE
Performance
- Maximum Airflow Up to 160 cubic feet per minute
- Sound Quiet operation
- Conveniences
- Filter Change Easy access hinged door for filter cleaning and core cleaning
Technology
- Core Polypropylene, crossflow designed core
- Core Protection Incoming and outgoing air is prefiltered
- Compatible Controls Evolution® or separate ventilator control
Installation
- Placement Wall or ceiling mounted
- Venting Horizontal
- Electrical 115V
Aesthetics
- Cabinet Taupe color on metal matches Bryant furnace and fan coils
- Dimensions 19.125″H x 23.5″W x 16.125″D

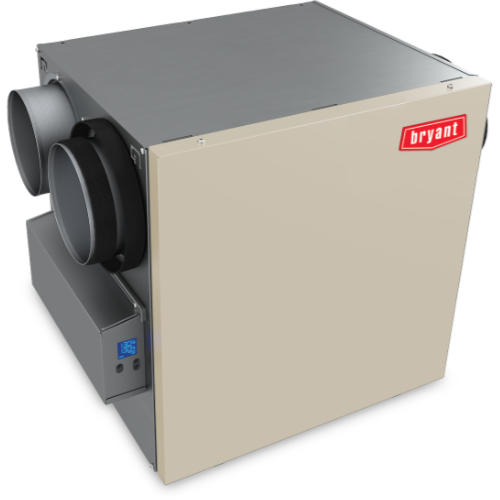

Bryant HRVXXSHB Ventilator
Keep Heating Efficiently and Bring in Fresh Air Without Opening the Windows
This model delivers enhanced, refreshing ventilation for a smaller home with a horizontal indoor furnace or fan coil. Operating on the same principals as all of our HRVs, it transfers indoor heat energy to the incoming air to provide an infusion of freshness on extremely cold days. It’s a great way to let the fresh air in without letting your energy dollars out.
Air Flow: Up to 160 cubic feet per minute
Sensible Recovery Energy:
Up to 65% SRE
Features
- Brings in fresh air and expels stale, sometimes unhealthy air
- High-efficiency heat recovery core pre-conditions incoming air to minimize heat energy loss
- Prefilters particulates from incoming air and outgoing air to protect core
- Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
- Capable of intermittent- or continuous operation depending on control used
- Automatically defrosts when outdoor temperatures are below 23°F
- Designed for quiet operation
- 10-year parts limited warranty upon timely registration
Specifications
Efficiency
- Sensible Recovery Energy Up to 65% SRE
Performance
- Maximum Airflow Up to 160 cubic feet per minute
- Sound Quiet operation
Conveniences
- Filter Change Easy access hinged door for filter cleaning and core cleaning
Technology
- Core Polypropylene, crossflow designed core
- Core Protection Incoming and outgoing air is prefiltered
- Compatible Controls Evolution® or separate ventilator control
Installation
- Placement Wall or ceiling mounted
- Venting Horizontal
- Electrical 115V
Aesthetics
- Cabinet Taupe color on metal matches Bryant furnace and fan coils
- Dimensions 19.125″H x 23.5″W x 16.125″D

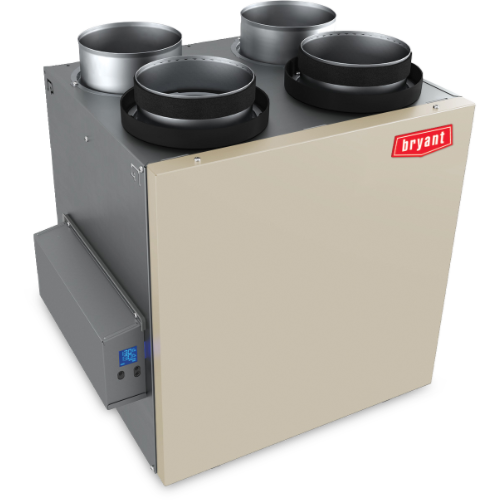

Bryant HRVXXSVA Ventilator
Keep Heating Efficiently and Bring in Fresh Air Without Opening the Windows
This model delivers enhanced, refreshing ventilation for a smaller home with a horizontal indoor furnace or fan coil. Operating on the same principals as all of our HRVs, it transfers indoor heat energy to the incoming air to provide an infusion of freshness on extremely cold days. It’s a Designed for smaller homes in a colder winter climate with moderate or low summer humidity, this HRV is like having a “one-way” window that lets fresh air in without letting your energy dollars out. Its special crossflow core transfers indoor heat energy to the incoming air before sending the stale air out. It’s a much better way to enjoy fresh air and cozy comfort inside when it’s cold and dreary outside. great way to let the fresh air in without letting your energy dollars out.
Air Flow: 160 cubic feet per minute
Sensible Recovery Energy: Up to 65% SRE
Features
- Brings in fresh air and expels stale, sometimes unhealthy air
- High-efficiency heat recovery core pre-conditions incoming air to minimize heat energy loss
- Prefilters particulates from incoming air and outgoing air to protect core
- Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
- Capable of intermittent- or continuous operation depending on control used
- Automatically defrosts when outdoor temperatures are below 23°F
- Designed for quiet operation
- 10-year parts limited warranty upon timely registration
Specifications
Efficiency
- Sensible Recovery Energy Up to 65% SRE
Performance
- Maximum Airflow 160 cubic feet per minute
- Sound Quiet operation
- Core Life Varies with use – moderate use: approximately 1 year
Conveniences
- Filter Change Easy access hinged door for filter cleaning and core cleaning
Technology
- Core Polypropylene, crossflow designed core
- Core Protection Incoming and outgoing air is prefiltered
- Compatible Controls Evolution® or separate ventilator control
Installation
- Placement Wall or ceiling mounted
- Venting Vertical
- Electrical 115V
Aesthetics
- Cabinet Taupe color on metal matches Bryant furnace and fan coils
- Dimensions 21.5″H x 21″W x 16.125″D
Bryant HRVXXSVB Ventilator
Keep Heating Efficiently and Bring in Fresh Air Without Opening the Windows
Designed for smaller homes in a colder winter climate with moderate or low summer humidity, this HRV is like having a “one-way” window that lets fresh air in without letting your energy dollars out. Its special crossflow core transfers indoor heat energy to the incoming air before sending the stale air out. It’s a much better way to enjoy fresh air and cozy comfort inside when it’s cold and dreary outside.
Air Flow: 160 cubic feet per minute
Sensible Recovery Energy: Up to 75% SRE
Features
- Brings in fresh air and expels stale, sometimes unhealthy air
- High-efficiency heat recovery core pre-conditions incoming air to minimize heat energy loss
- Prefilters particulates from incoming air and outgoing air to protect core
- Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
- Capable of intermittent- or continuous operation depending on control used
- Automatically defrosts when outdoor temperatures are below 23°F
- Designed for quiet operation
- 10-year parts limited warranty upon timely registration
Specifications
Efficiency
- Sensible Recovery Energy Up to 75% SRE
Performance
- Maximum Airflow 160 cubic feet per minute
- Sound Quiet operation
- Core Life Varies with use – moderate use: approximately 1 year
Conveniences
- Filter Change Easy access hinged door for filter cleaning and core cleaning
Technology
- Core Polypropylene, crossflow designed core
- Core Protection Incoming and outgoing air is prefiltered
- Compatible Controls Evolution® or separate ventilator control
- Installation
- Placement Wall or ceiling mounted
- Venting Vertical
- Electrical 115V
Aesthetics
- Cabinet Taupe color on metal matches Bryant furnace and fan coils
- Dimensions 21.5″H x 21″W x 16.125″D

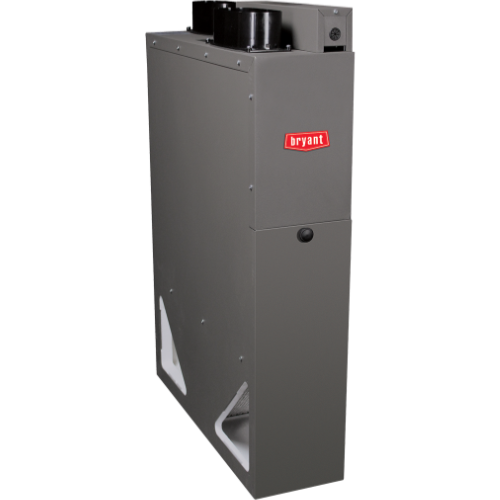

Bryant ERVCRNVA Ventilator
Space-Saving Design Lets You Bring in Fresh Air Without Opening Windows
This uniquely designed ventilator can mount directly onto your furnace or return air duct. As a Legacy™ Series product, count on it to be a lasting value for your home. You can have fresh air year round – even on extreme days. It’s a much better fresh air solution than opening a window and letting your energy dollars fly out.
Air Flow: Up to 130 cubic feet per minute
Sensible Recovery Energy:
Up to 60% SRE
Features
- Brings in fresh air and expels stale, sometimes unhealthy air
- Slim design is only 7.25″ wide and eliminates half the normal venting runs
- Pre-conditions incoming air to reduce energy loss
- Reduces humidity in summer from incoming fresh air
- Prefilters particulates from incoming air with a MERV 6 filter to protect the core
- Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
- Designed for continuous-mode operation without defrost cycling
- Best used in IECC climate zones 1-5
- Nearly silent operation
- 10-year parts limited warranty upon timely registration
Specifications
Efficiency
- Sensible Recovery Energy Up to 60% SRE
Performance
- Maximum Airflow Up to 130 cubic feet per minute
- Sound Quiet operation
Conveniences
- Filter Change Easy access hinged door for filter cleaning and core cleaning
Technology
- Core Moisture absorbing, crossflow, enthalpic core
- Core Protection Incoming and outgoing air is prefiltered
- Compatible Controls Runs during furnace or fan coil blower operation – wall control not necessary
- Installation
- Placement Furnace or return duct mounted
- Venting Vertical
- Electrical 115V
Aesthetics
- Cabinet Taupe color on metal matches Bryant furnace and fan coils
- Dimensions 32″H x 7.25″W x 23.5″D

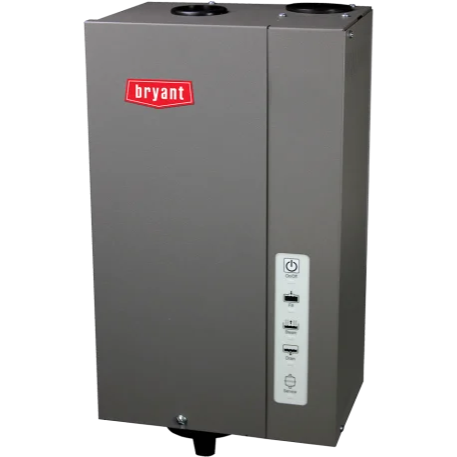

Bryant HUMCRSTM Humidifier
Steam Humidifier Delivers Maximum Humidity and Control
This steam humidifier offers a more “dialed-in” level of humidity control to better protect fine furnishings and keep you comfortable in those dry seasons. And with up to 34 gallons daily output, you can enjoy the comfort with confidence knowing it’s built to handle higher square footage interiors.
Features
- Patented steam dispersion tube delivery for best moisture delivery
- Steam generation via electrodes
- Tolerant of a wide range of water conditions
- Highest capacity type best for larger homes
- Replaceable steam canister
- Front-facing, easy-access door
- Nearly silent operation
- A better choice for homes with heat pumps
- 10-year parts limited warranty upon timely registration
Specifications
Performance
- Capacity Up to 34 gallons per day, depending upon voltage and amperage
- Sound Nearly silent
Technology
- Dispersal Electrode generated steam delivered via patented dispersion tube
- Compatible controls Evolution® control, Preferred™ Thermidistat™ or separate humidifier control
Installation
- Installation Can be mounted onto units installed in upflow, downflow or horizontal positions or can be remote mounted
- Electrical 120V, 208V or 240V
Aesthetics
- Outer casing Taupe color on metal matches Bryant furnace and fan coils
- Dimensions 21″H x 10.25″W x 7.25″D

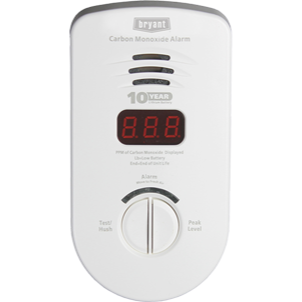

Bryant COALM Carbon Monoxide Alarm
Protect Your Home Against Dangerous Levels of Carbon Monoxide
The Bryant Carbon Monoxide Alarm uses sophisticated electronics and unmatched sensor technology to detect the CO levels in your home.
Features
- Monitors CO levels in home
- Loud audible alarm
- Peak level button displays the highest CO level recorded since alarm was last reset
- Protection provided during a power outage by a rechargeable lithium ion battery
- Plugs into any standard electrical outlet
- 10-year limited warranty
Specifications
Performance
- Response Times At 70 ppm, unit must alarm within 60-240 minutes; At 150 ppm, unit must alarm within 10-50 minutes; At 400 ppm, unit must alarm within 4-15 minutes
Technology
- Power Source 120 VAC
- Audio Alarm 85dB at 10 feet
- LED Displays CO concentration in PPM
- Temperature Range 40° F (4.4° C) to 100° F (37.8° C)
Aesthetics
- Size 6.0625 x 3.75 x 1.75″

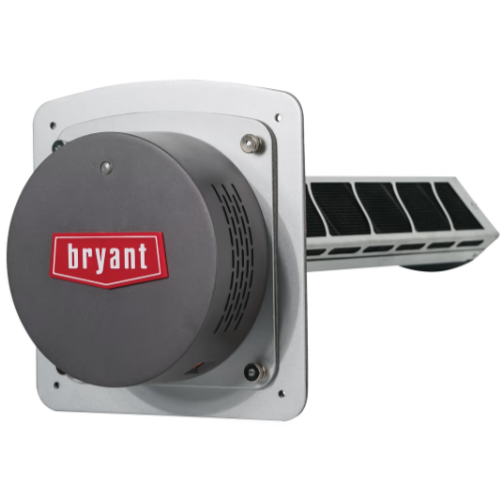

Bryant UVCAP Carbon Air Purifier with UV
Helps Improve Indoor Air Quality & Minimize Odors
Our Carbon Air Purifier with UV provides dual treatment technology through a carbon core and UV light to improve indoor air quality. It helps maintain a healthier home through air purification targeting the reduction of unwanted odors, volatile organic compounds, and common household gases from indoor air, while aiding in the reduction of microorganism, e.g., bacteria and viruses, growth on the evaporative coil, and release into recirculated indoor air.
Features
- Provides continuous treatment while your HVAC system is running so you can enjoy a healthier home.
- The UV light aids in the reduction of microorganism, e.g., bacteria and viruses, growth on the cooling coil and release into the air.
- The carbon core helps address the reduction of common, unwanted, and potentially harmful household gases and odors.
- Reduces ozone in recirculated air.
- Easy to maintain requiring replacement of the carbon core each year and UV bulb every 2-years.
- Convenient light indication on ballast allows for validation of proper product operation.
- Option to add an additional UV light for even greater surface coverage.
Specifications
Performance
- Average Power Consumption 20 watts
- Zero Ozone Emissions The Carbon Air Purifier with UV meets UL 2998 ensuring that this product has been tested and independently validated by a neutral third party for Zero Ozone Emissions – Measured Ozone Emissions from the Carbon Air Purifier with UV during use phase does not exceed 0.005 ppm as tested by UL 867.
- Minimum Average Lamp Life 2 years
